| Anzahl | Stückpreis |
|---|---|
| Bis 4 |
49,95 €
|
| Bis 19 |
48,15 €
-3,60 %
|
| Ab 20 |
46,35 €
-7,21 %
|
Sofort verfügbar, Lieferzeit: 1-3 Tage
Diese kompakte 5 Megapixel USB-Kamera mit Autofokus lässt sich unter Windows oder Linux einfach und ohne Treiber verwenden. Nachfolger des Artikels OV5648 5MP USB Kamera mit Autofokus (RBS12727).
Weitere Informationen wie Datenblätter, Pinouts, Anleitungen und Beispiele finden Sie auf der Herstellerwebseite von Waveshare.
Details
- 5 megapixel OV5640 sensor
- 2592x1944 resolution
- USB interface, UVC protocol, auto focusing, driver-free, plug-and-play
- Small in size, easy to integrate into your project
- DSP
- Automatic white balance (AWB)
- Automatic exposure (AEC)
- Automatic gain control (AGC)
- Camera specifications
- CCD size: 1/4inch
- Aperture (F): 2.8
- Focal Length (EFL): 3.29mm
- Field of View (Diagonal): 68°
- Interface: USB2.0
- Image formats: MJPEG, YUY2
- Operating temperature: 0°C ~ 50°C

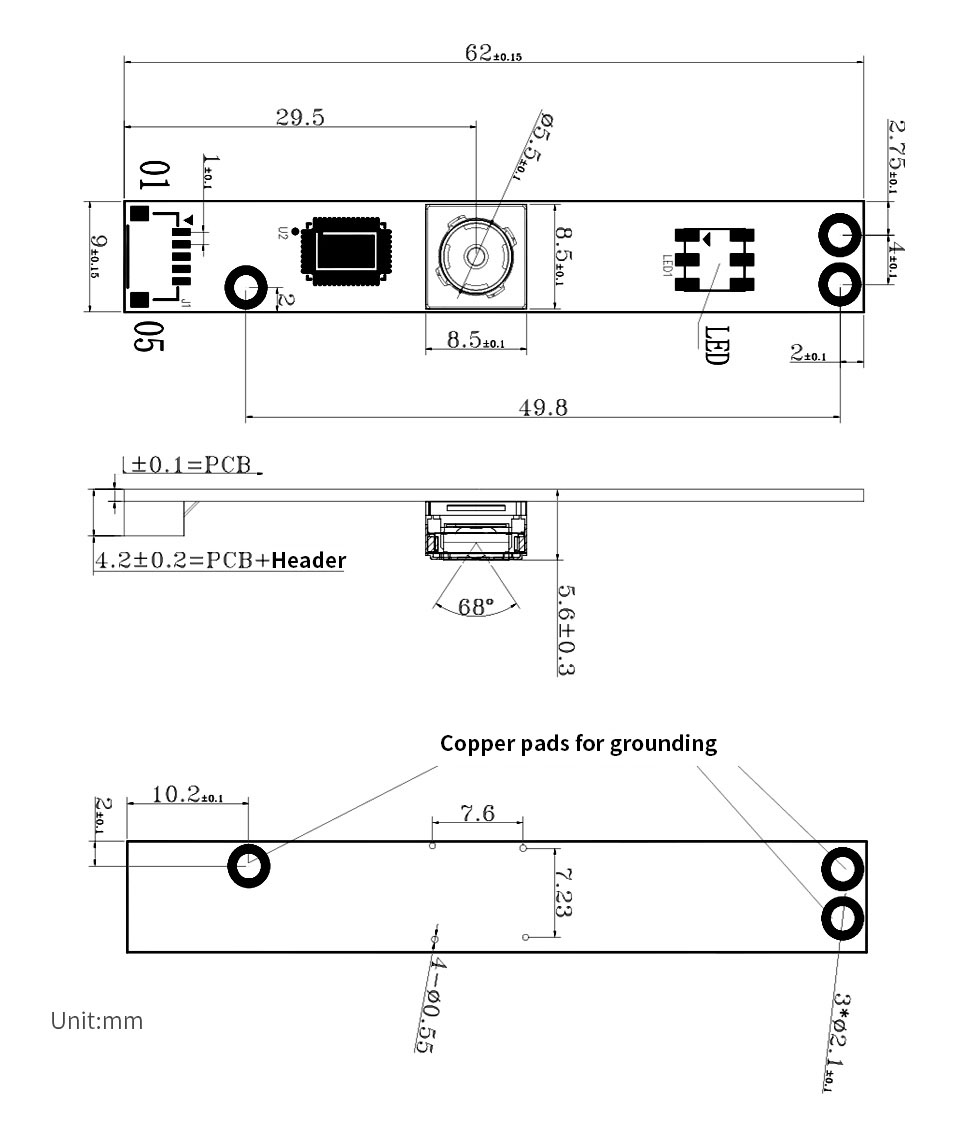

- Dimension: 9mmx62mm
- Supported OS: Windows, Linux
Lieferumfang

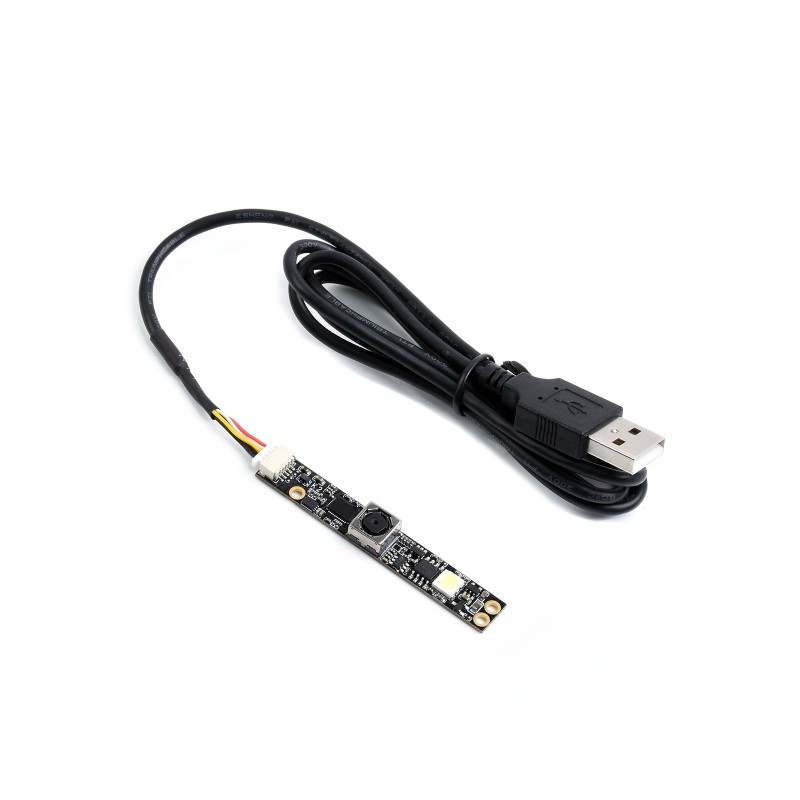

- 1x OV5640 5MP USB Kamera
- 1x USB auf 5-Pin Kabel
Downloads
| Produktart: | Erweiterungsmodul |
|---|
Waveshare
Waveshare ist ein chinesischer Entwickler und Hersteller von hochwertigen Modulen, Sensoren, Bausätzen und Zubehör für Microcontroller.
Die Artikel von Waveshare zeichnen sich vor Allem durch ihre hohe Qualität und ausführliche Dokumentation. Egal ob Schaltpläne, Datenblätter, Anleitungen, Projektbeispiele - im Waveshare Wiki werden sämtliche Ressourcen kostenlos zur Verfügung gestellt.
