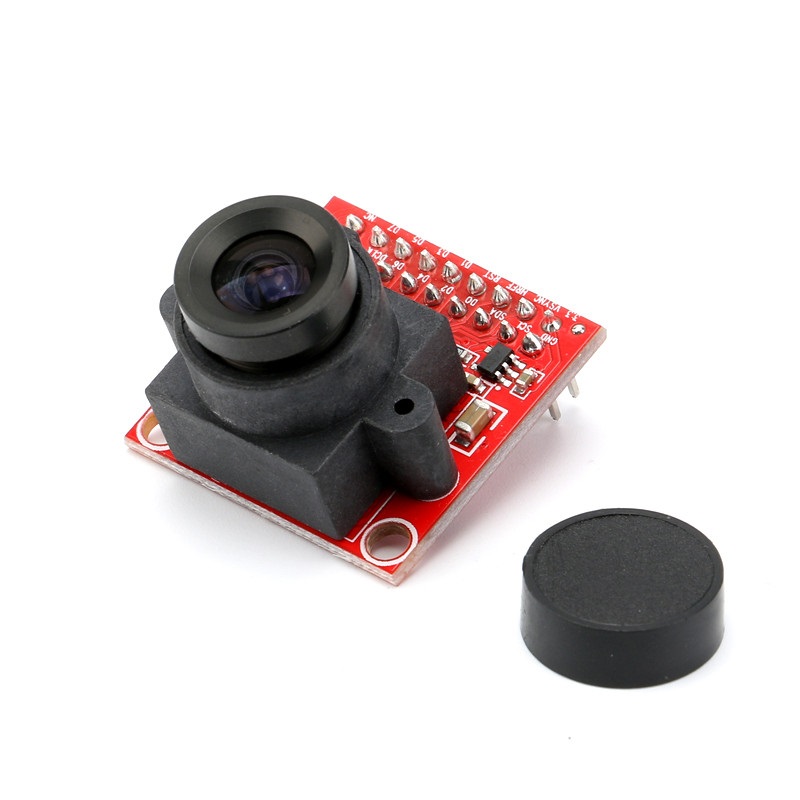

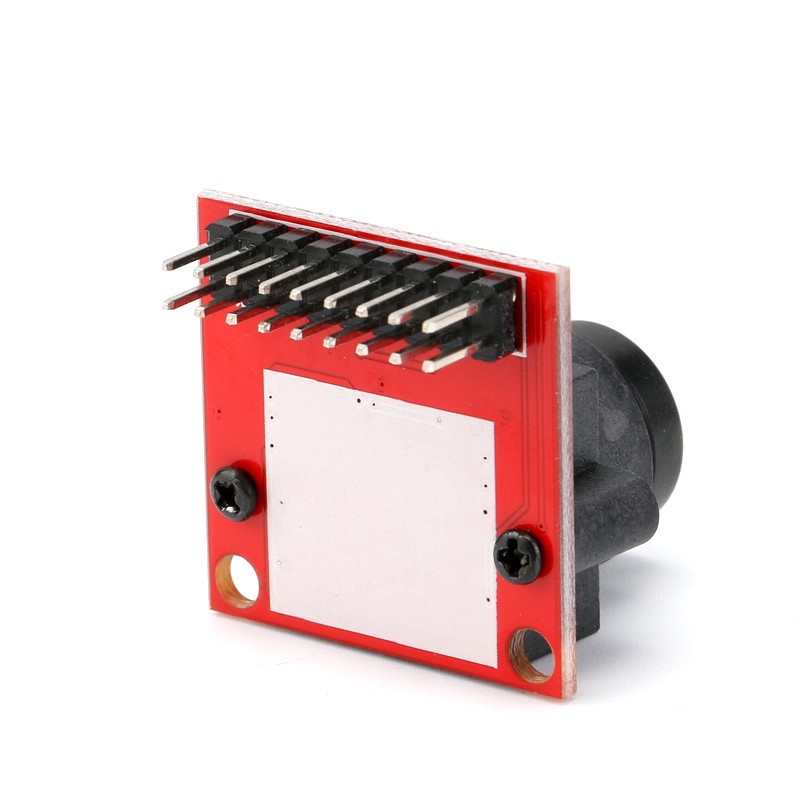

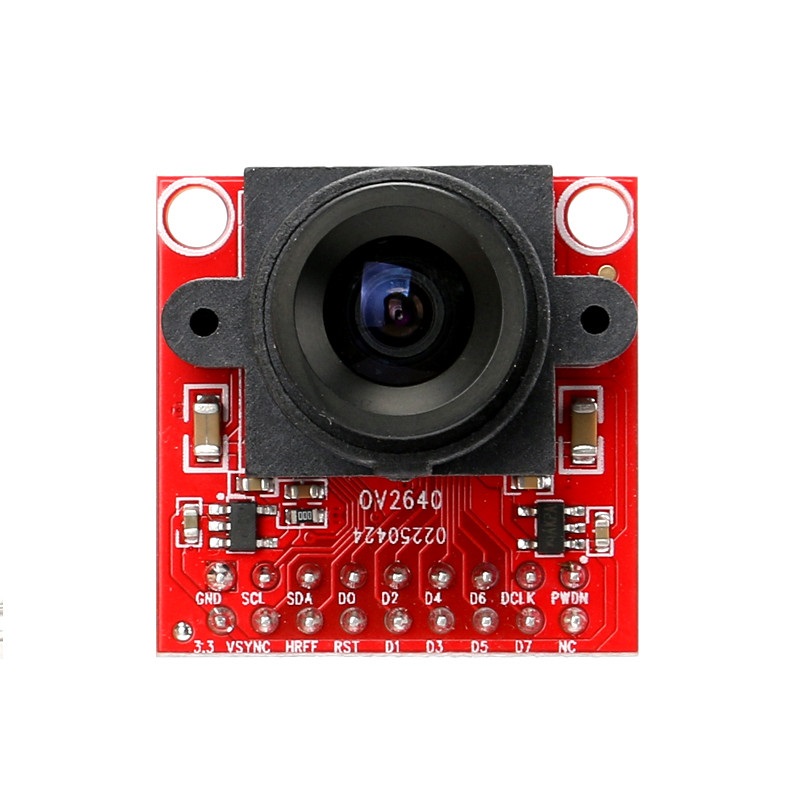

OV2640 Kameramodul CMOS Sensor 2 MP

Details

• High sensitivity, low voltage suitable for embedded applications
• Standard SCCB interface, compatible with IIC interface
• Supports RawRGB, RGB (GRB4: 2: 2, RGB565 / 555/444), YUV (4: 2: 2) and YCbCr (4: 2: 2) output formats
• Support UXGA, SXGA, VGA, QVGA, QQVGA, CIF, QCIF, and up to 40 * 30 size of the various sizes
• Support automatic exposure control, automatic gain, automatic white balance, automatic elimination of light stripes, automatic black level calibration
• Support image quality control (color saturation, hue, gamma sharpness ANTI_BLOOM and other settings)
• Supports image scaling, pan and window settings
• Support image compression, you can output JPEG image data
• Comes with embedded microprocessors
• Integrated active crystal 12M, no external clock supply
• Integrated LDO, only need to provide 3.3V power supply to work properly
• Operating voltage: 3.3V
• Product power consumption: 40mA
• Maximum pixels: 1600 * 1200 (200W)
• Lens focal length: 3.6MM
• Lens perspective: 78 °
• Lens aperture: F2.0
• Dynamic range: 50 but B
• Output format: RGB565 / JPEG / YUV / YCbCr and so on
• Control interface: SCCB
• IO port level: 2.8V LVTTL, compatible with 3.3V

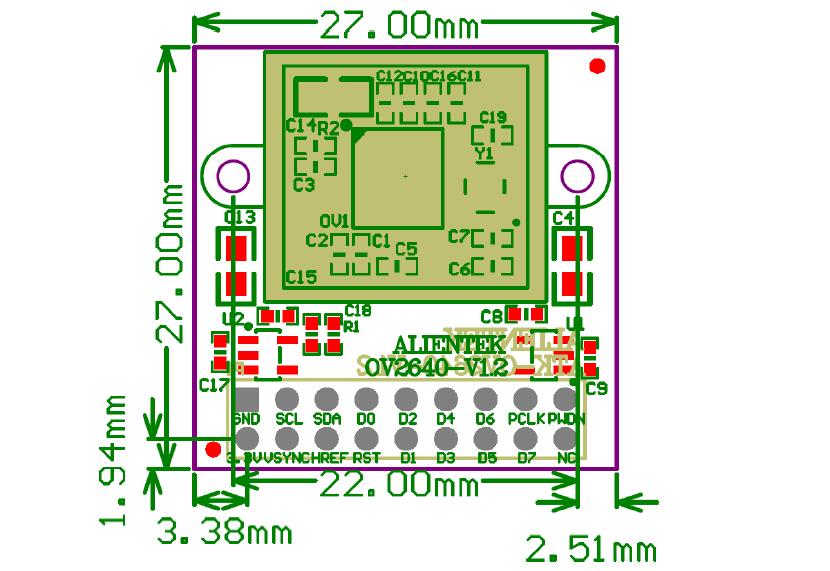

• Product Size: 27 * 27mm
• Working temperature: -30 ℃ ~ +70 ℃

Lieferumfang

• 1x OV2640 Kameramodul
