Ultra leiser Schrittmotortreiber für CNC-Maschinen, Gravierer, Plotter und 3D-Drucker mit Nema Schrittmotoren bis 4.33A.

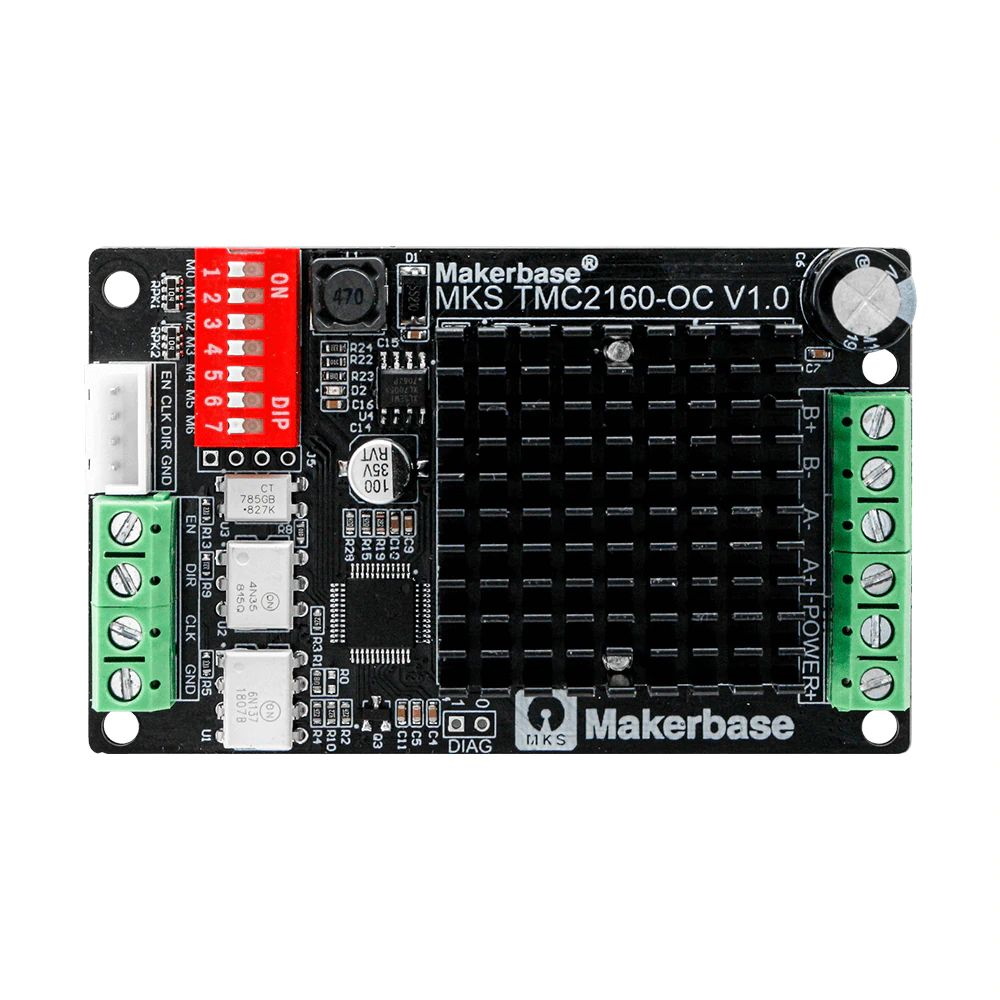

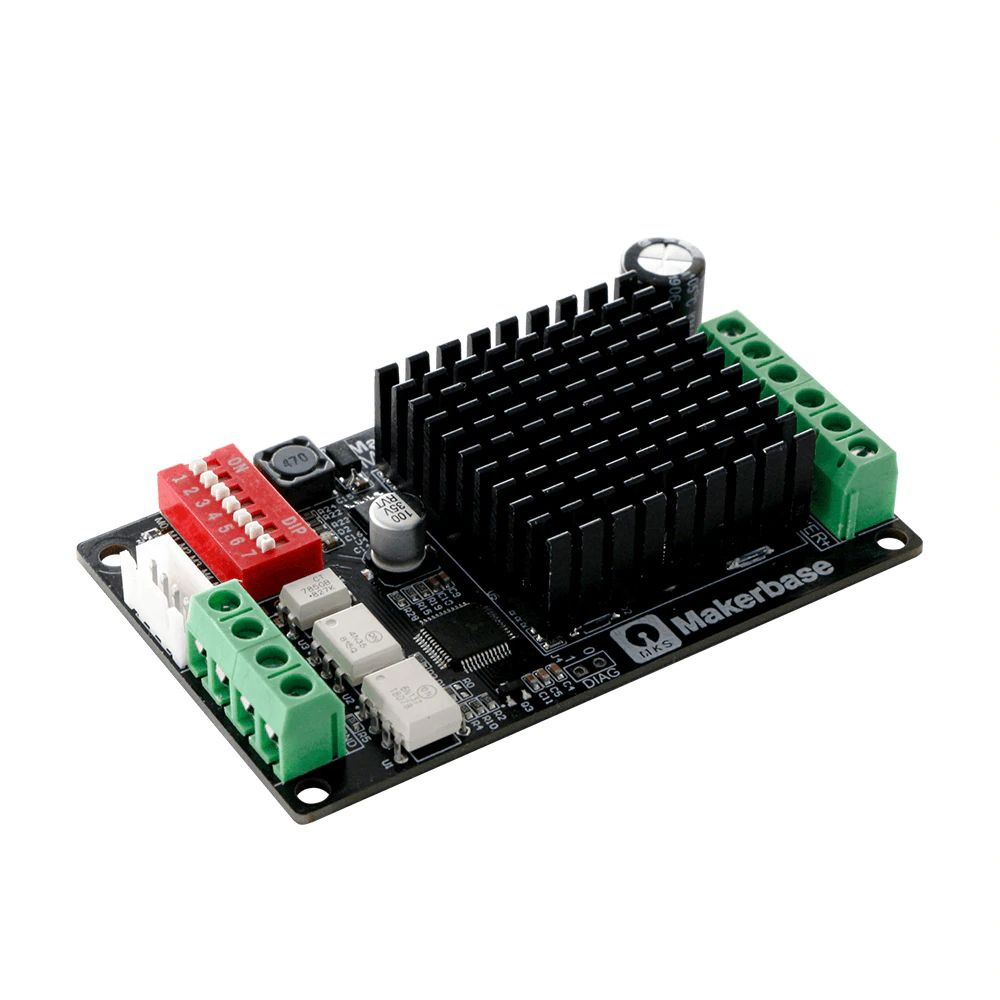

Die MKS TMC2160-OC Schrittmotorkarte unterstützt EN+/- Input und eignet sich ideal für MKS Gen, MKS SBASE und RAMPS 1.4 Boards.
Details
- Eingangsspannung: DC 8-40V (Empfohlen: DC 12-35V)
- Highspeed Octocoupler, keine Schrittverluste
- TMC2160 Treiber
- Max Motorstrom: 4.33A
- Microstep: 16 / 32 / 64
- Spreadcycle & Stealthchop Modus
- Großer Kühlkörper zur Wärmeableitung
Lieferumfang
- 1x MKS TMC2160-OC Schrittmotortreiber
Hersteller-Information: anzado GmbH, Römerstadt 2-4, 66121 Saarbrücken, Deutschland, info@roboter-bausatz.de
Verantwortlich i.S.d. GPSR: anzado GmbH, Römerstadt 2-4, 66121 Saarbrücken, info@roboter-bausatz.de
Downloads
| Arbeitsspannung: | 8-40V |
|---|---|
| Konfiguration: | Step/Dir |
| Mikroschritte (Max.): | 1/64 |
| Modellkompatibilität: | Universal |
| Motorstrom (max. pro Phase): | 4.33 A |
| Produktart: | Schrittmotortreiber |
