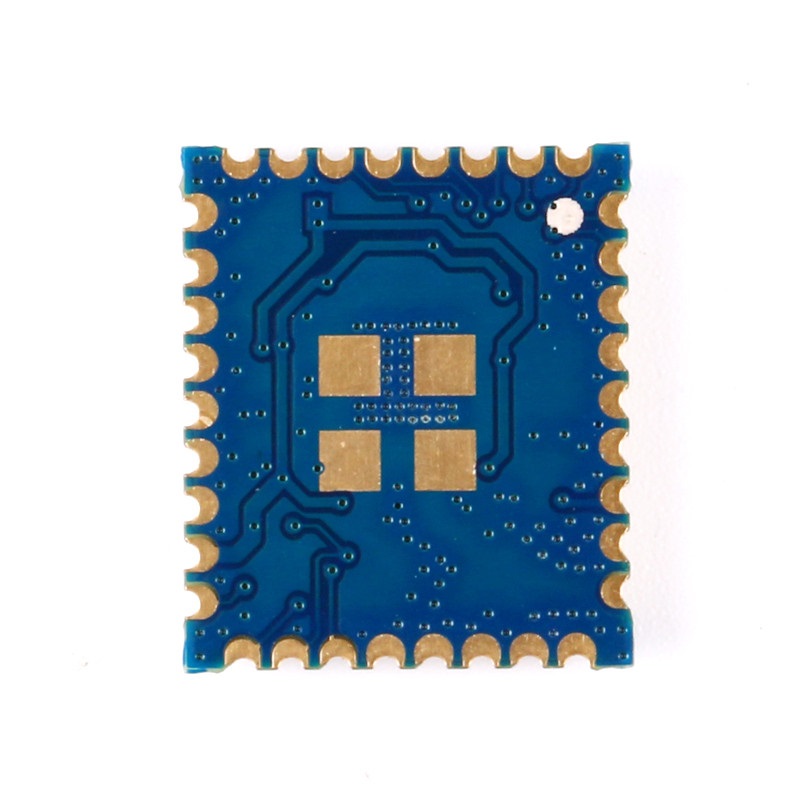

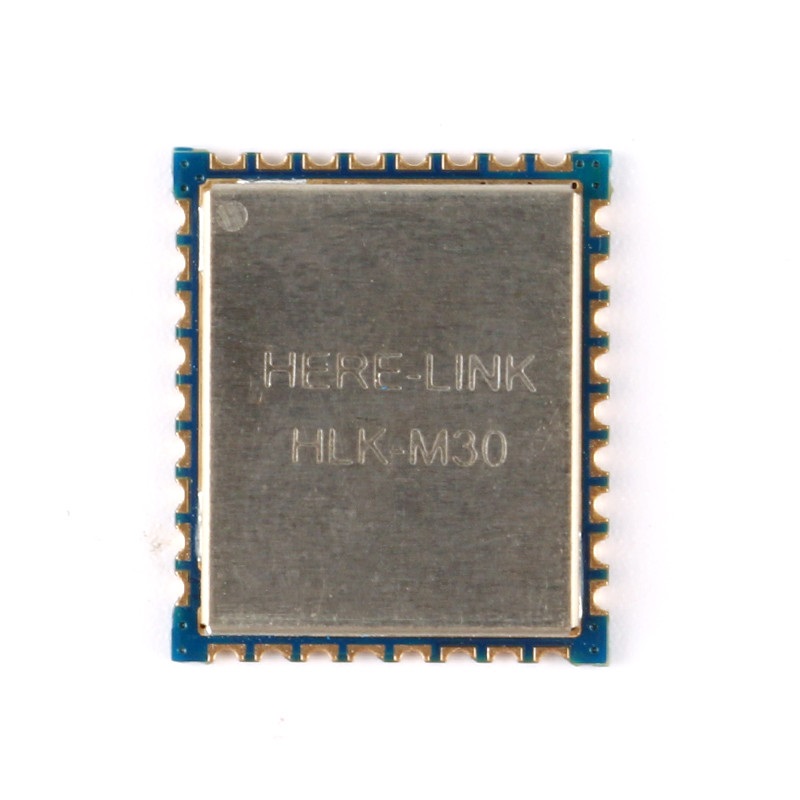

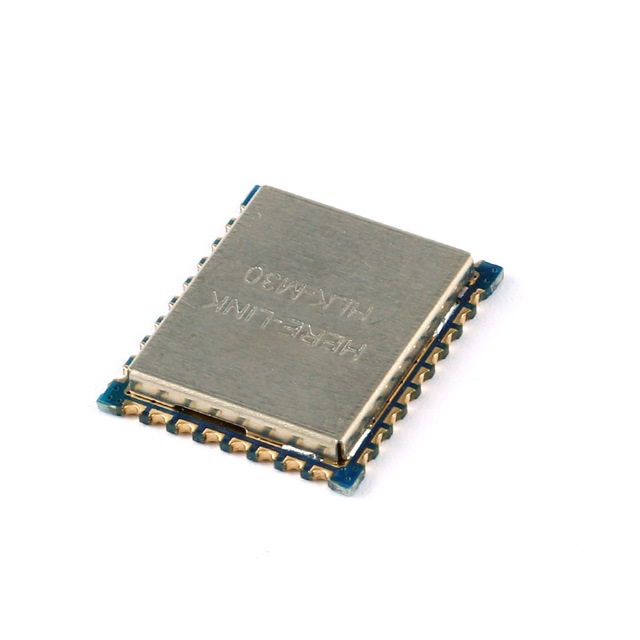

HLK-M30 MTK7681 Serial Wifi Modul

Details

• Wireless standard:  IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Wireless transmission rate:  11n: up to 150Mbps, 11g: up to 54Mbps, 11b: up to 11Mbps
• The number of channels:   1-14
• The frequency range:  2.4-2.4835G
• Transmitting power:   14-18 DBM
• Interface:  Serial port, GPIO
• The type of antenna:  The external antenna
• The transmission distance: 100-300 meters
The WIFI working mode:  Wireless network card / wireless access point
Wireless security:  Wireless security features,64/128/152 bit WEP encryption,WPA-PSK/WPA2-PSK, WPA/WPA2 security mechanism
The maximum transmission rate: 115200bps
The TCP connection:  The maximum number of connections 4
The UDP connection:  The maximum number of connections 4
Working temperature:  -20-70 Celsius
Humidity: 10%-90%RH (not condensed)
Storage temperature:   -40-80 Celsius
Storage humidity:   5%-90%RH (not condensed)
Band selectable bandwidth:  20MHz, 40MHz, automatic

Lieferumfang

• 1x HLK-M30 MTK7681 Serial Wifi Modul
