| Anzahl | Stückpreis |
|---|---|
| Bis 4 |
6,20 €
6,89 €
(10.01% gespart)
|
| Bis 9 |
6,08 €
-1,94 %
|
| Ab 10 |
6,02 €
-2,90 %
|
Sofort verfügbar, Lieferzeit: 1-3 Tage

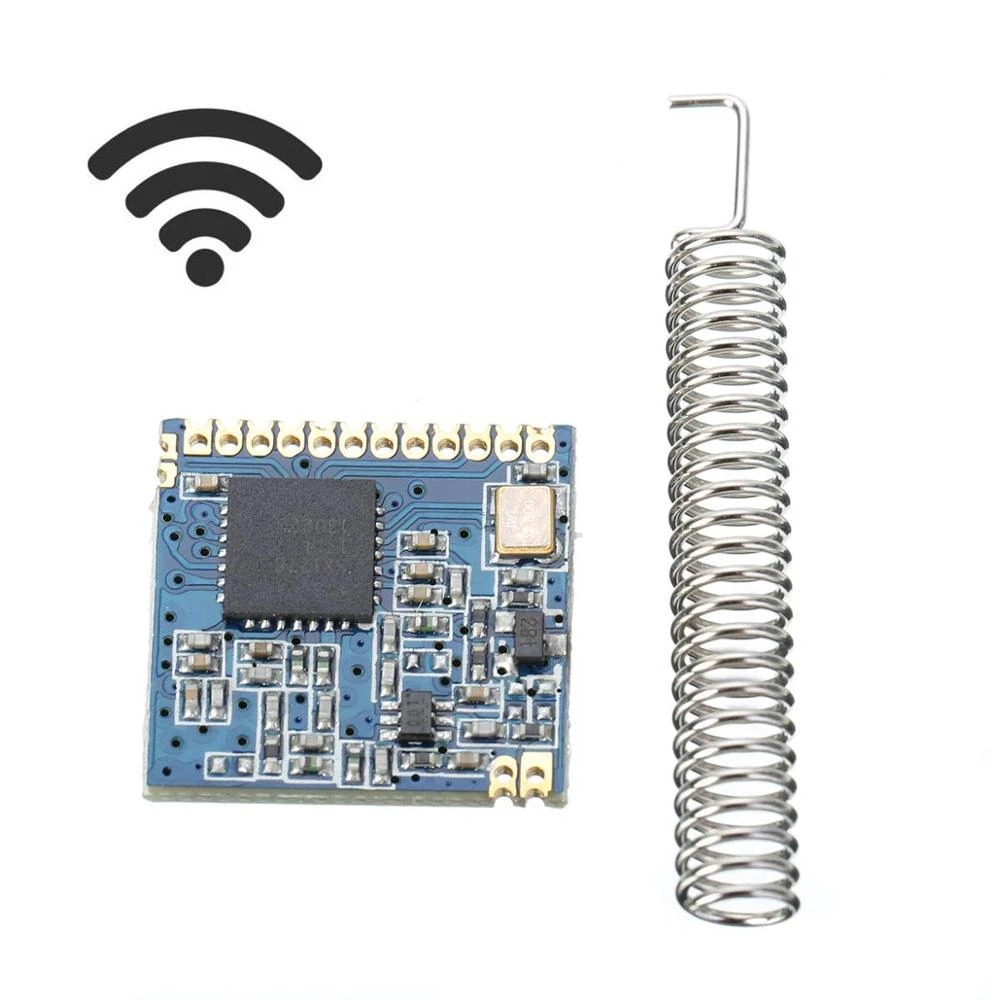

Dieses 433 Mhz Funkmodul benutzt zusätzlich zum GFSK Standard auch die neuste LoRa Modulation Technologie zur Übertragung über lange Strecken. Die maximale Übertragungsreichweite beträgt unter optimalen Bedingungen bis zu 5 KM.
Das Funkmodul eignet sich für verschiedenste Anwendungen in der DIY-Elektronik und kann z.B. in Tablets, Smarthome-Steuerungen, Sicherheitstechnik und Kontrollsystem verbaut werden.
Details
- FSK / GFKS technology, LoRa (remote) spread spectrum technology
- Half duplex communication
- Super anti-jamming (channel rejection ratio: 56db)
- High Receive Sensitivity -139dbm. (32M Passive 10ppm Crystal)
- ISM multi-band, no need to apply for frequency free use.
- Multi-frequency optional, a variety of transmission rate. Can be used in FDMA and FM technology.
- Intelligent reset, low voltage monitoring, timer wakeup, low power mode, sleep mode
- Low power consumption to accept current: 10-12mA
- 256-bit FIFO TX / RX
- RSSI channel detection function
- Transmission mode: FIFO / direct mode (recommended FIFO pack mode)
- Configuration: AFC / air wake-up function / low power consumption / carrier sense / FEC error correction / AEC encryption
- Ultra-long distance transmission open up to 5KM.

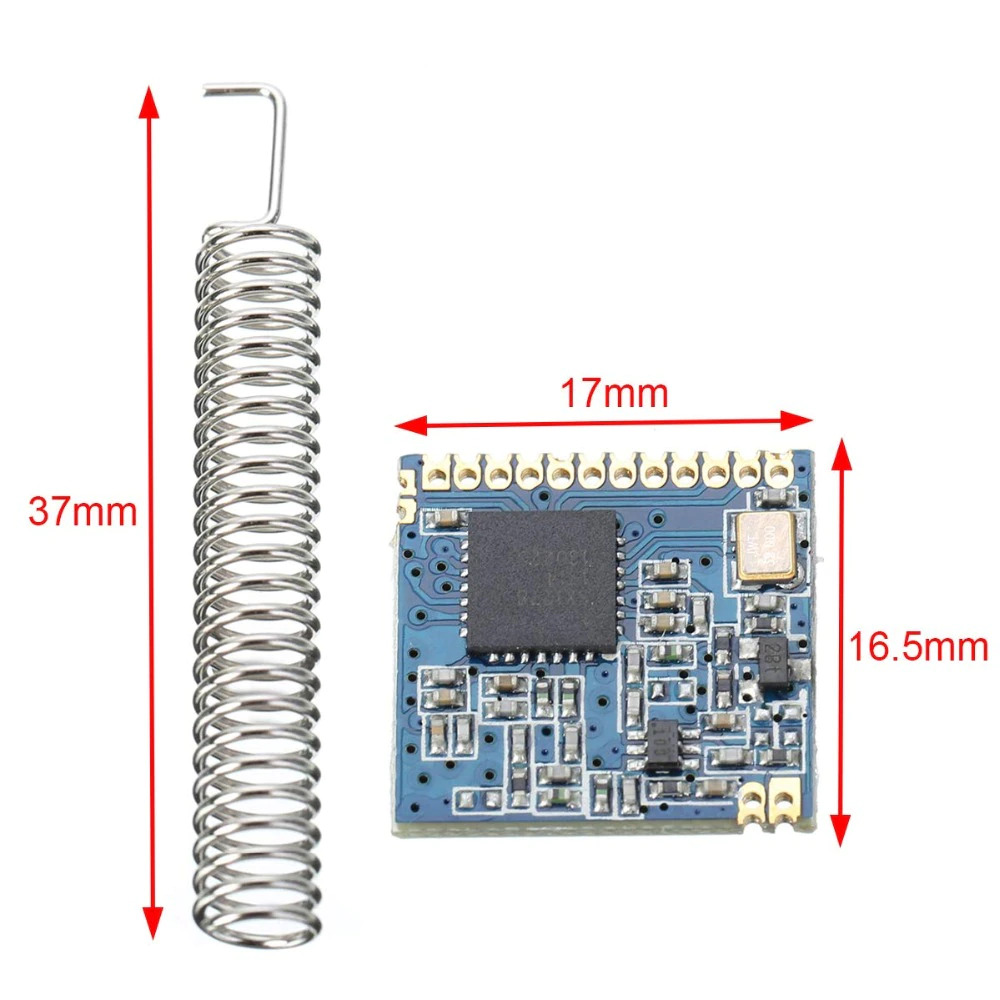

- Module size: 17 * 16.5mm
Lieferumfang

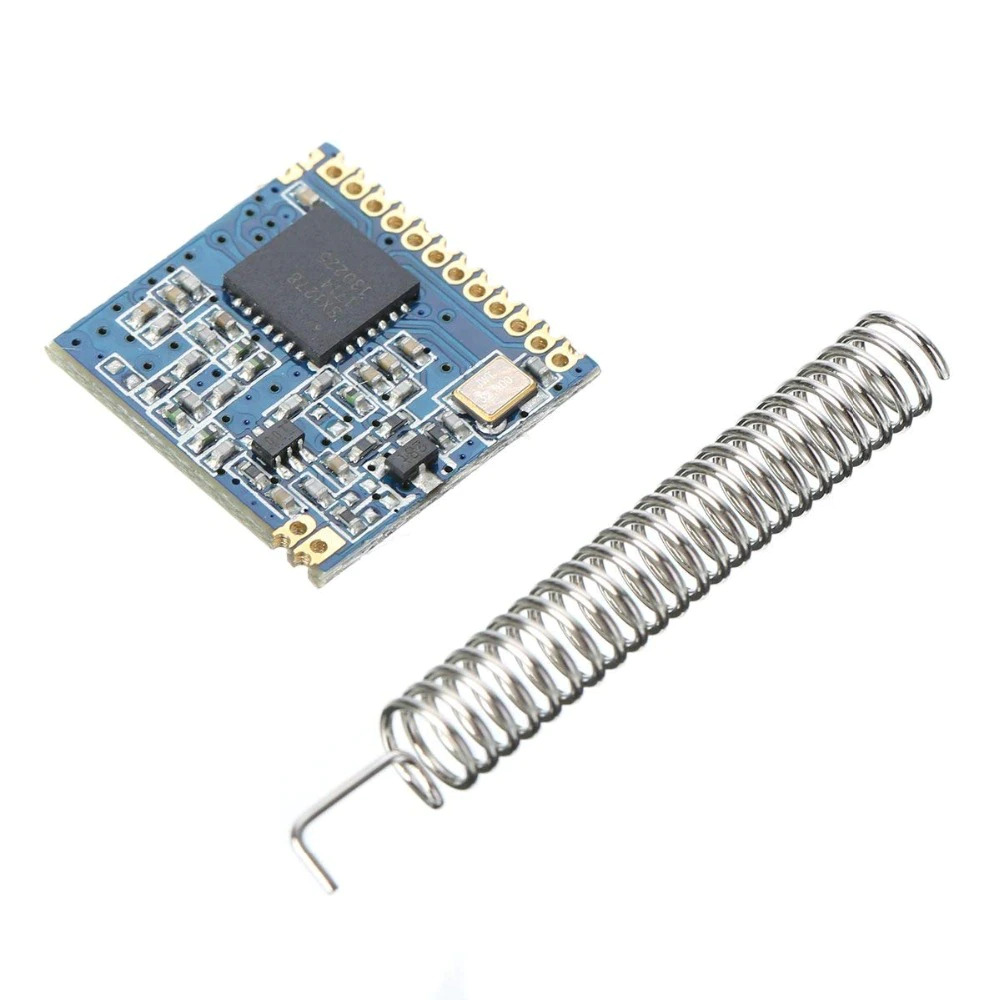

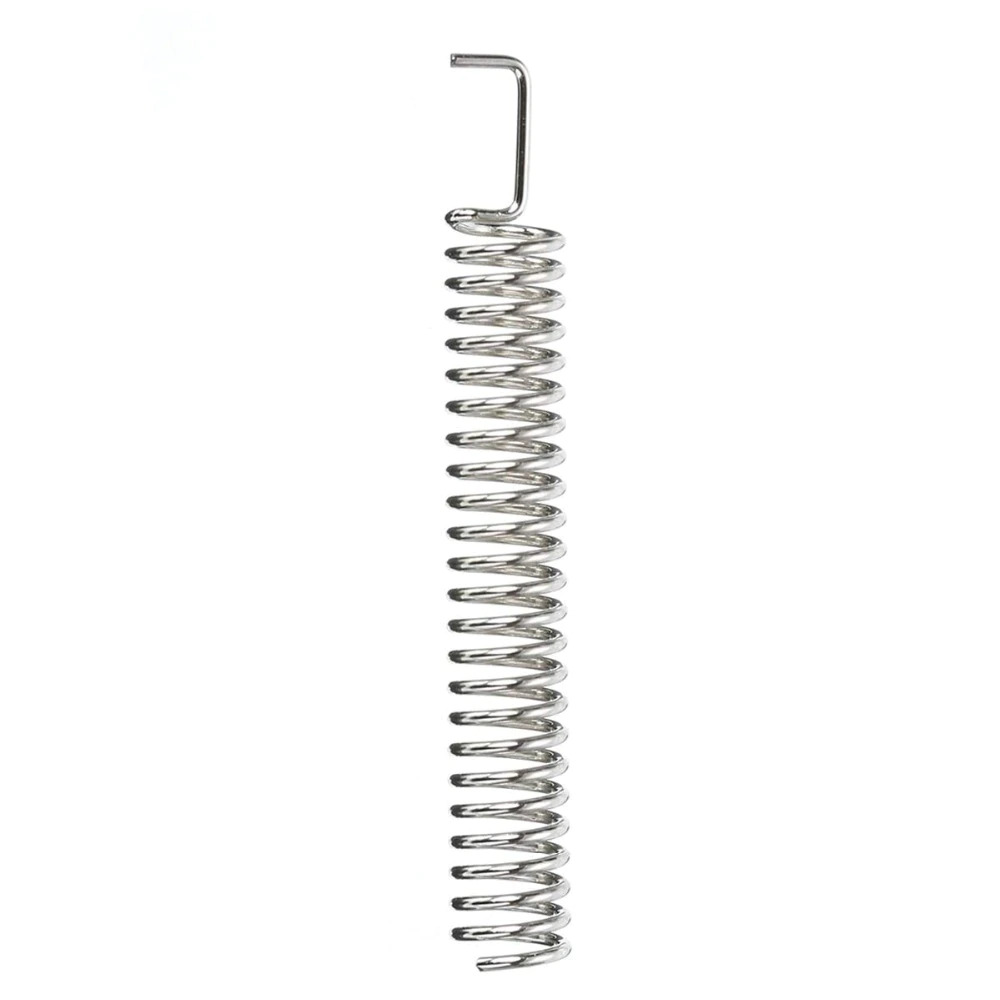

- 1x Modul + Antenne (wie abgebildet)
| Produktart: | Funkmodul |
|---|
