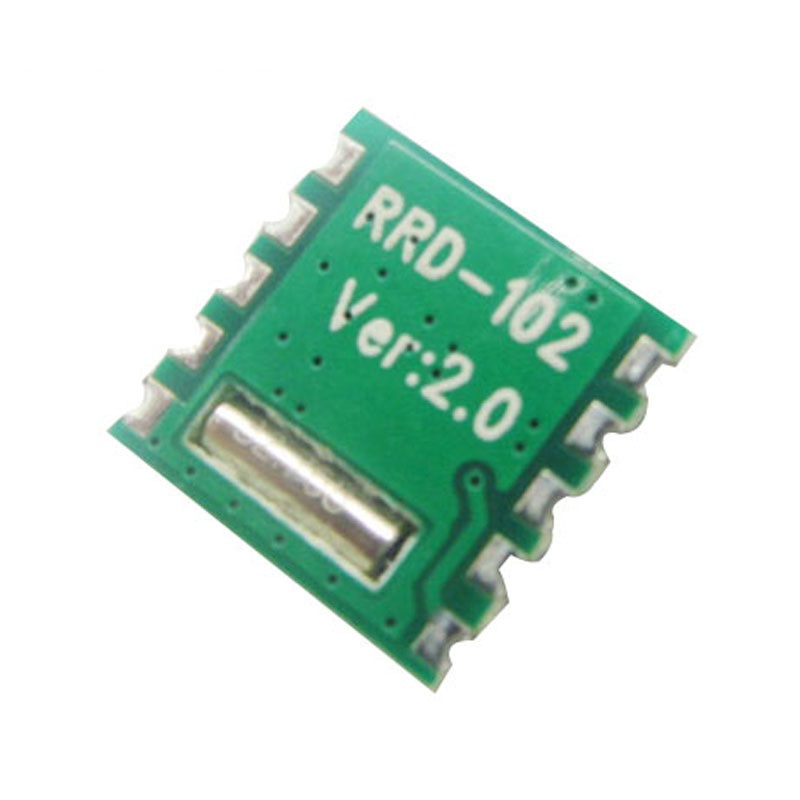

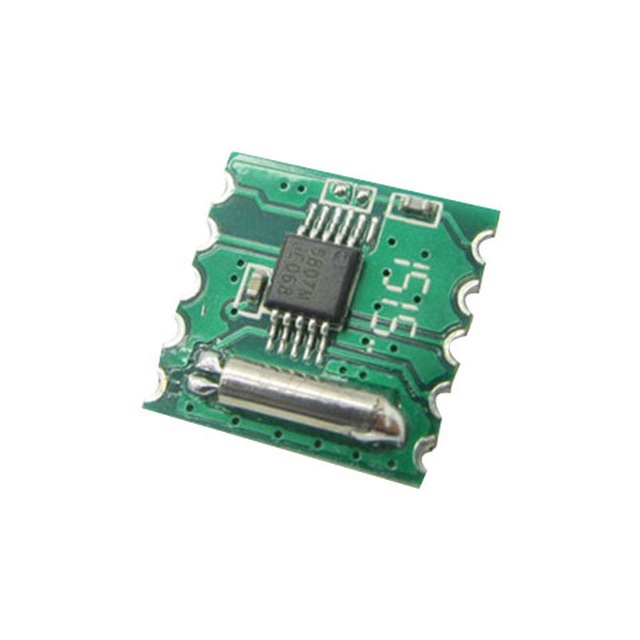

FM Stereo Radio RDA5807M Funkmodul

Beschreibung:

Details:

•  using a common 102BC module package , users can directly replace the use , without changing the circuit design.
•  high sensitivity, low noise, anti-interference ability , very few external components , small size (11 * 11.2MM Max), extremely simple to use .
•  76-108MHz FM band worldwide compatible ( 76-91MHz , including Japan , America and Europe 87.5-108.5MHz).
•  I2C serial data communications bus interface , support for external reference clock input.
• COMS technology fully integrated single-chip integrated circuits , power consumption is minimal.
• built-in high-precision A / D ( analog ) and digital frequency synthesizer.
• built-in LDO regulator , low power, wide voltage range (2.7-3.6VDC).
• built-in noise reduction, soft mute, bass boost circuit design.
• 32Ω load high power audio output, headphone connections are direct , no external audio driver amplifier .
• the application is simple , low cost , cost-effective

Lieferumfang:

• 1x FM Stereo Radio RDA5807M Funkmodul
