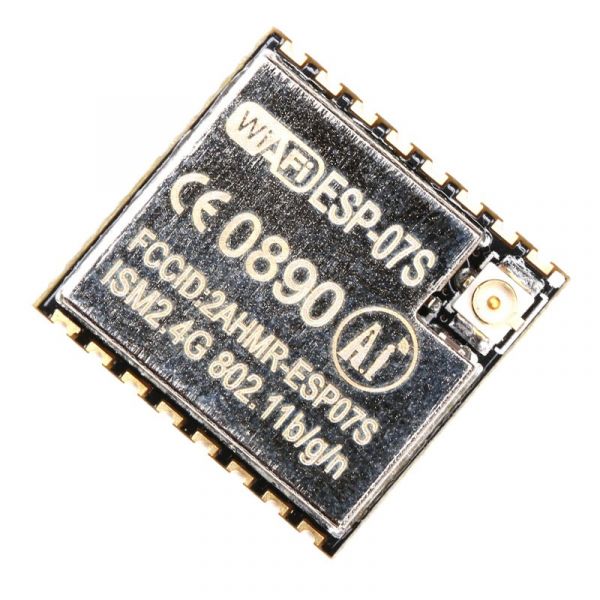

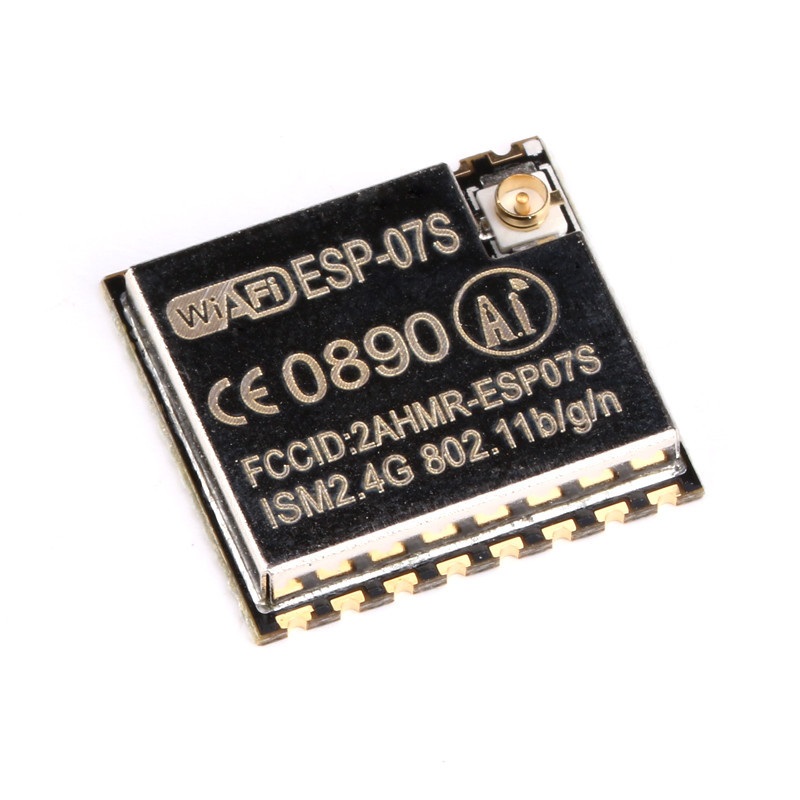

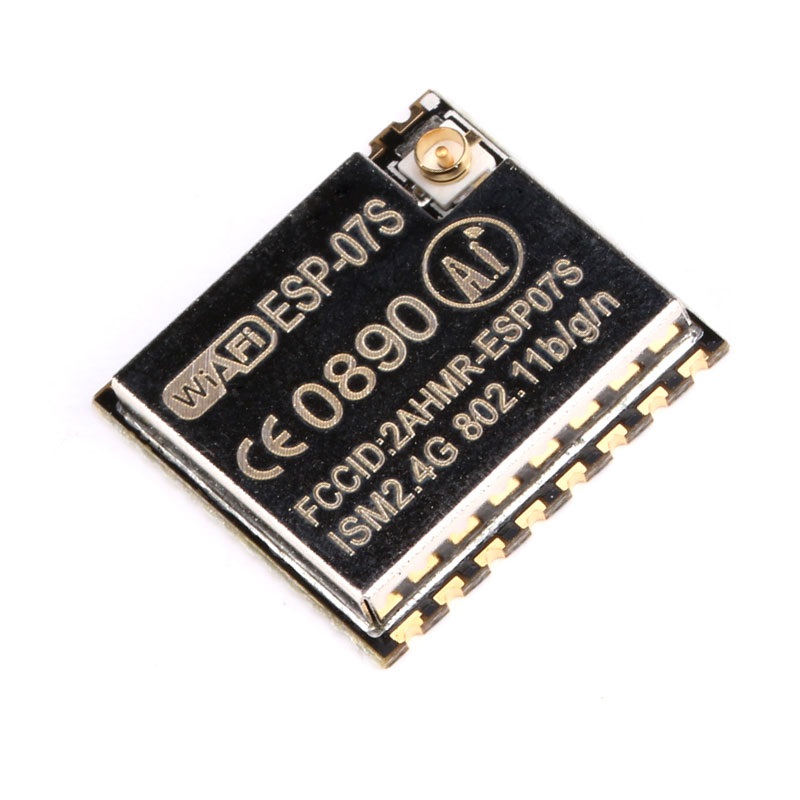

ESP8266 ESP-07S WiFi Serial Modul

Details

• 802.11 b / g / n
• Integrated low-power 32-bit MCU
• Integrated 10-bit ADC
• Integrated TCP / IP protocol stack
• Integrated TR switch, Balun, LNA, power amplifier and matching network
• Integrated PLL, controllers and power management units
• Supports antenna diversity
• Wi-Fi 2.4 GHz, supports WPA / WPA2
• Support for STA / AP / STA + AP operating modes
• Support for SmartLink feature (for Android and iOS devices)
• SDIO 2.0 (H), SPI, UART, I2C, I2S, IRDA, PWM, GPIO
• STBC, 1x1 MIMO, 2x1 MIMO
• A-MPDU & A-MSDU Aggregation and 0.4s Protection Interval
• Low-sleep power <10uA, power down leakage current <5uA
• Wake up and transfer packets in <2ms
• Standby Power Consumption <1.0mW (DTIM3)
• + 20dBm output power in 802.11b mode
• Operating temperature range -40 ° C to ~ 85 ° C
• CE & FCC Certificates

Lieferumfang

• 1x Modul (wie abgebildet)
