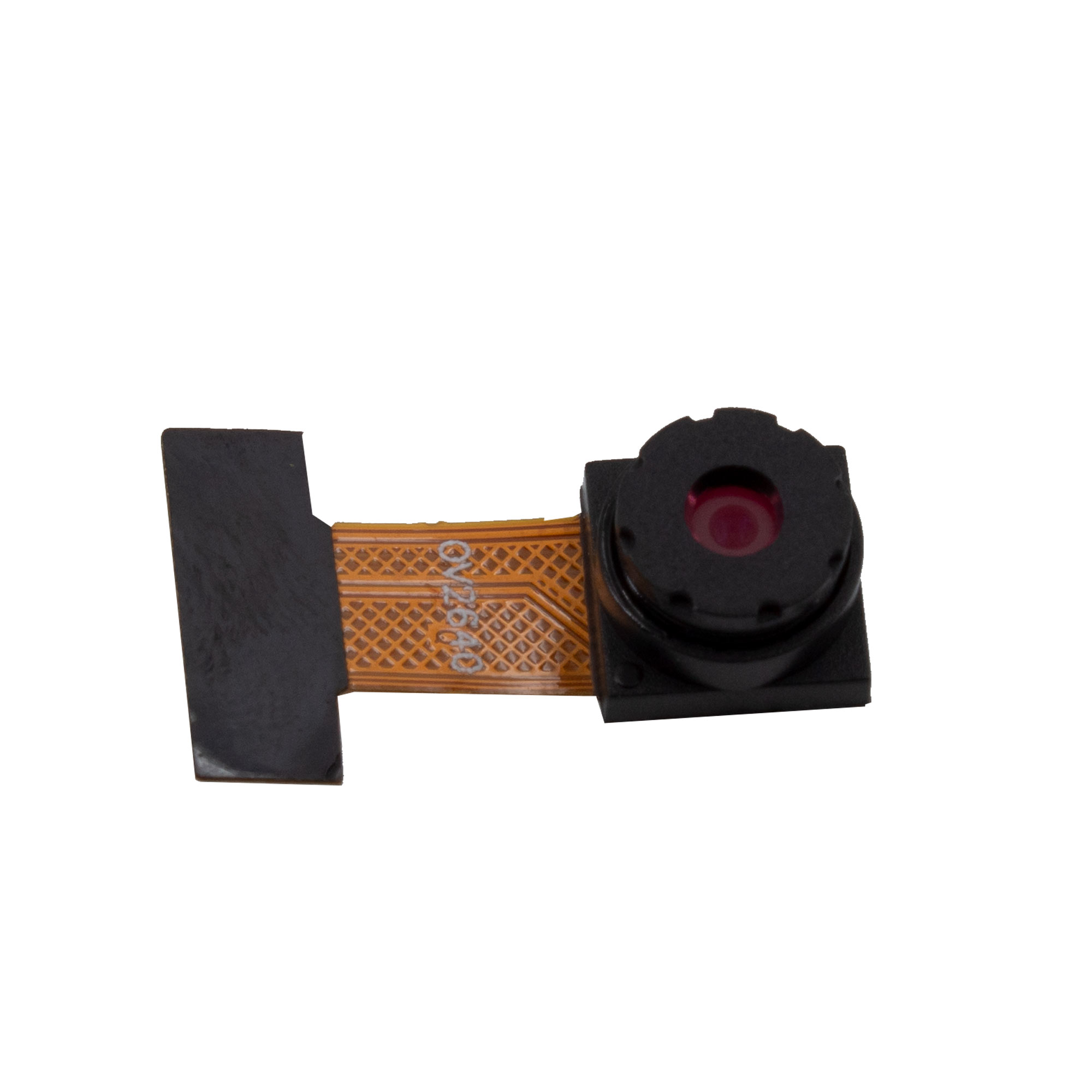

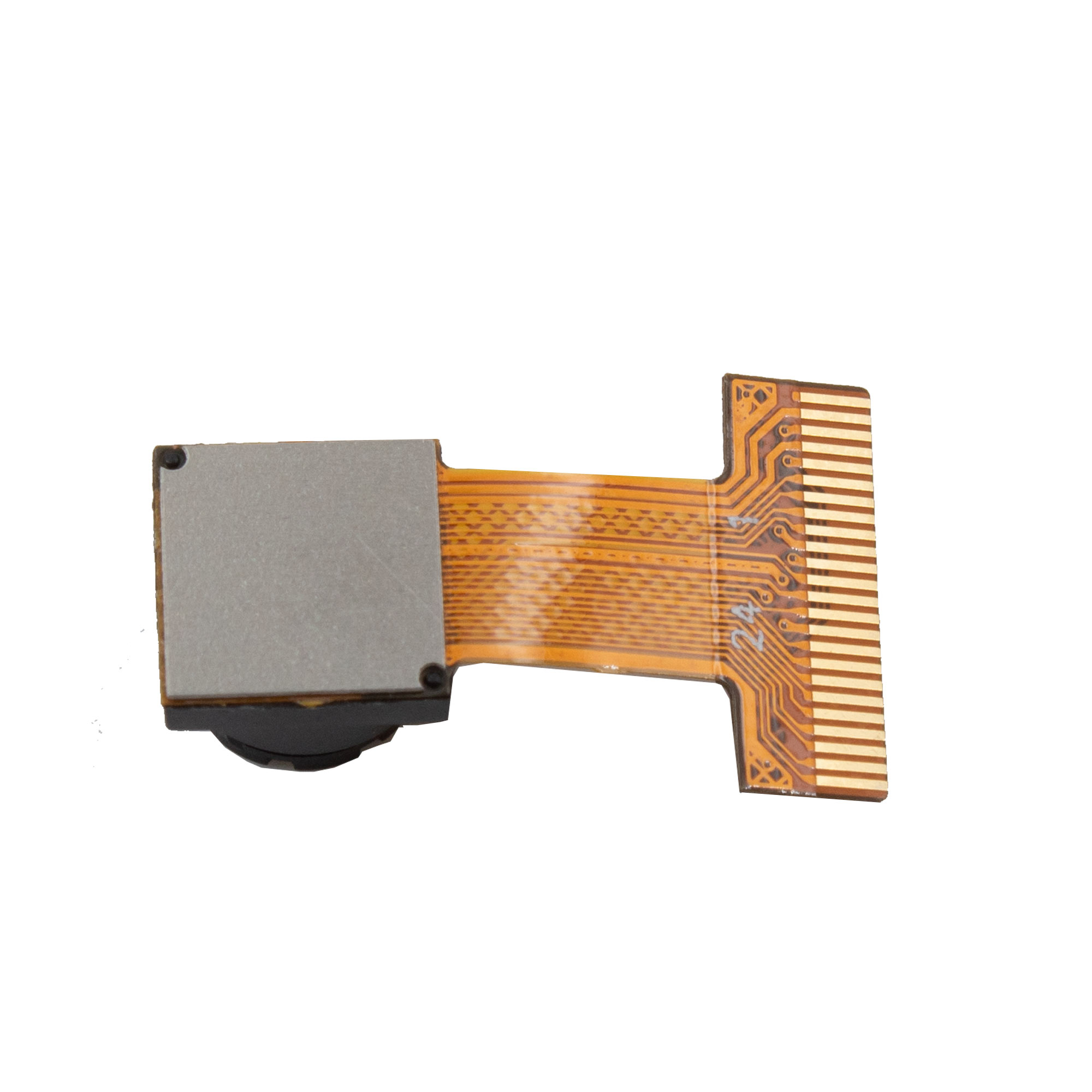

Kamera Modul OV2640 2MP

Details

•  High sensitivity suitable for low illumination applications
•  Low voltage suitable for embedded applications
•  Standard SCCB interface, compatible with I2C interface
• RawRGB, RGB (GRB4:2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output formats
•  Support UXGA, SXGA, VGA, QVGA, QQVGA, CIF, QCIF and various sizes up to 40x30
•  Support VarioPixel sub-sampling method
•  Automatic influence control functions include: automatic exposure control, automatic gain control, automatic white balance, automatic elimination of light streaks, automatic black level calibration. Image quality control includes color saturation, hue, gamma, sharpness ANTI_BLOOM
• ISP has the function of noise elimination and dead pixel compensation
•  Support image zoom
•  Lens loss compensation
•  Saturation automatic adjustment
•  Automatic adjustment of edge enhancement
•  Automatic adjustment of noise reduction
• key parameter
• Photosensitive array 1632x1232 Maximum format UXGA
• IO voltage 1.7V-3.3V analog voltage 2.5-3.0v (internal LDO powers the core 1.2V)
• Power consumption working TBD sleep <20μA
• Temperature operation -30℃ to 70℃
• Stable working 0℃ to 50℃
• Output format (8 bits) YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data
• Optical size 1/4"
• Field of view 66 degrees
• Maximum frame rate 15fps SXGA
• Sensitivity 1.3V/(Lux-sec)
• S/N ratio 40 dB
• Dynamic range 50 dB
• Browse mode line by line
• Electronic exposure 1 line to 1247 lines
• Pixel area 2.2μm x 2.2μm
• Dark current 15mV/s at 60℃

Lieferumfang

• 1x Kamera Modul OV2640 2MP
